Chicago Bolt

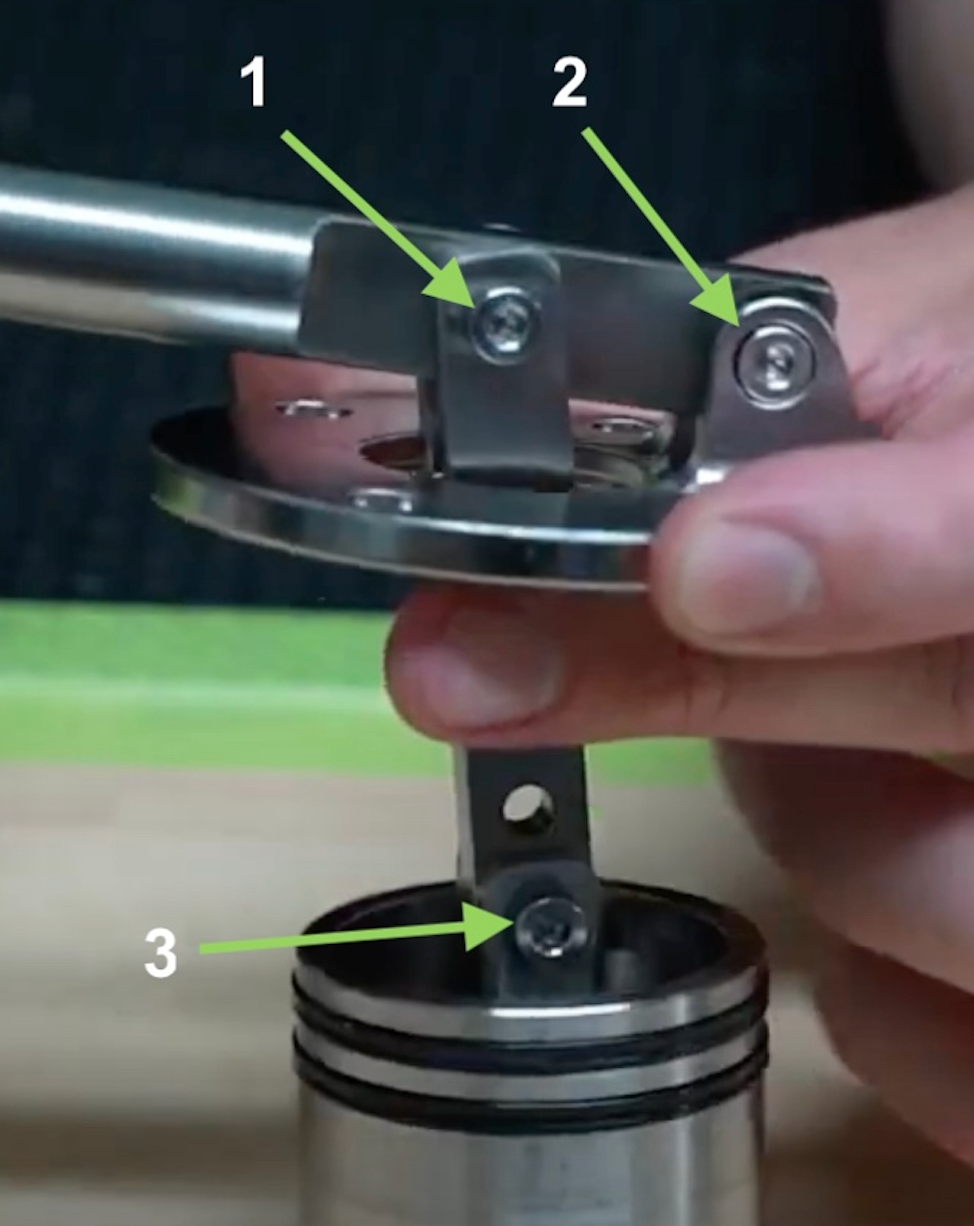

Chicago bolts are used in these 3 places.

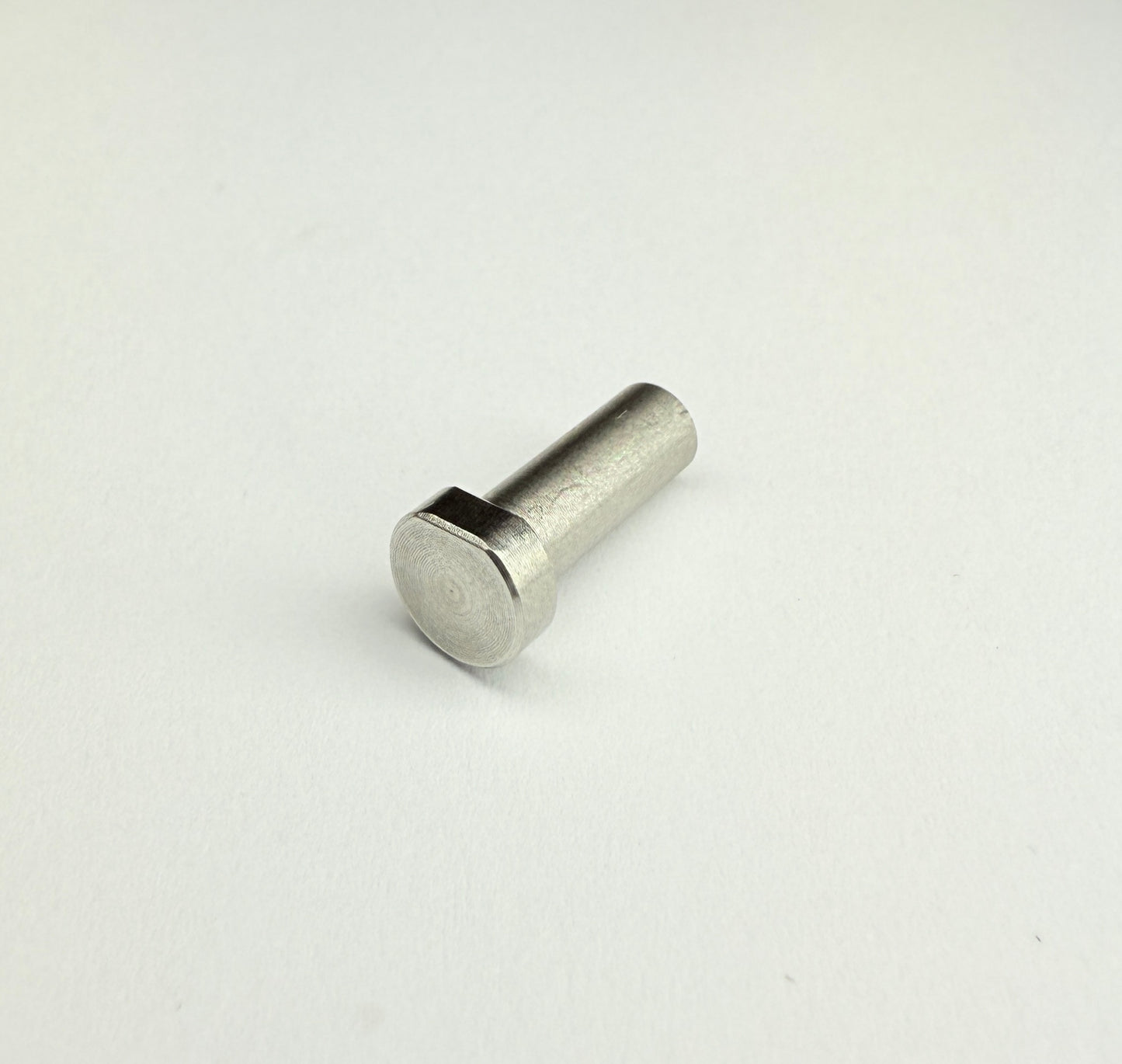

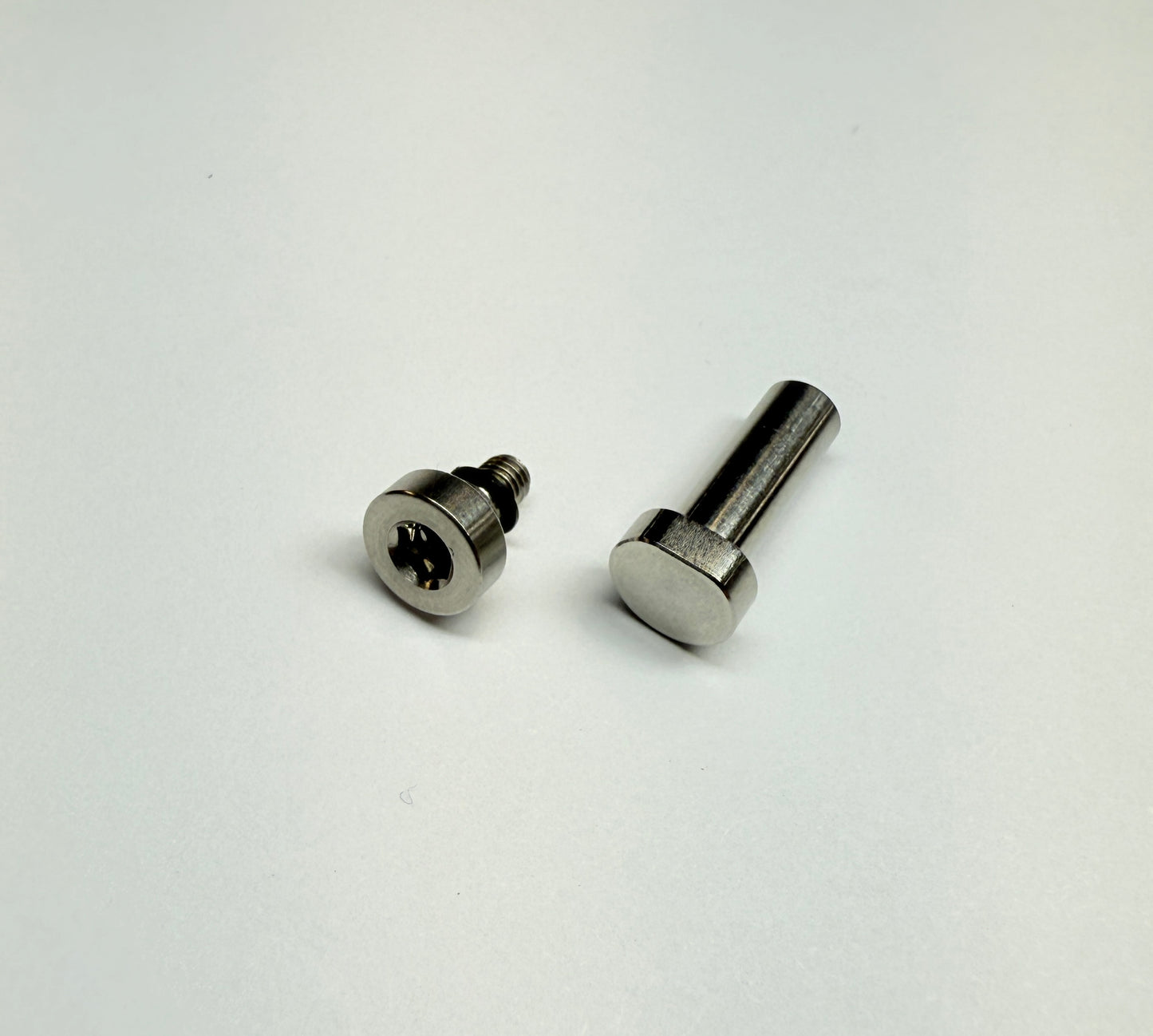

• Batch 2 machines use the female D shape because the lever cover, piston, and the included long throw linkage use a shelf to retain the female chicago bolt

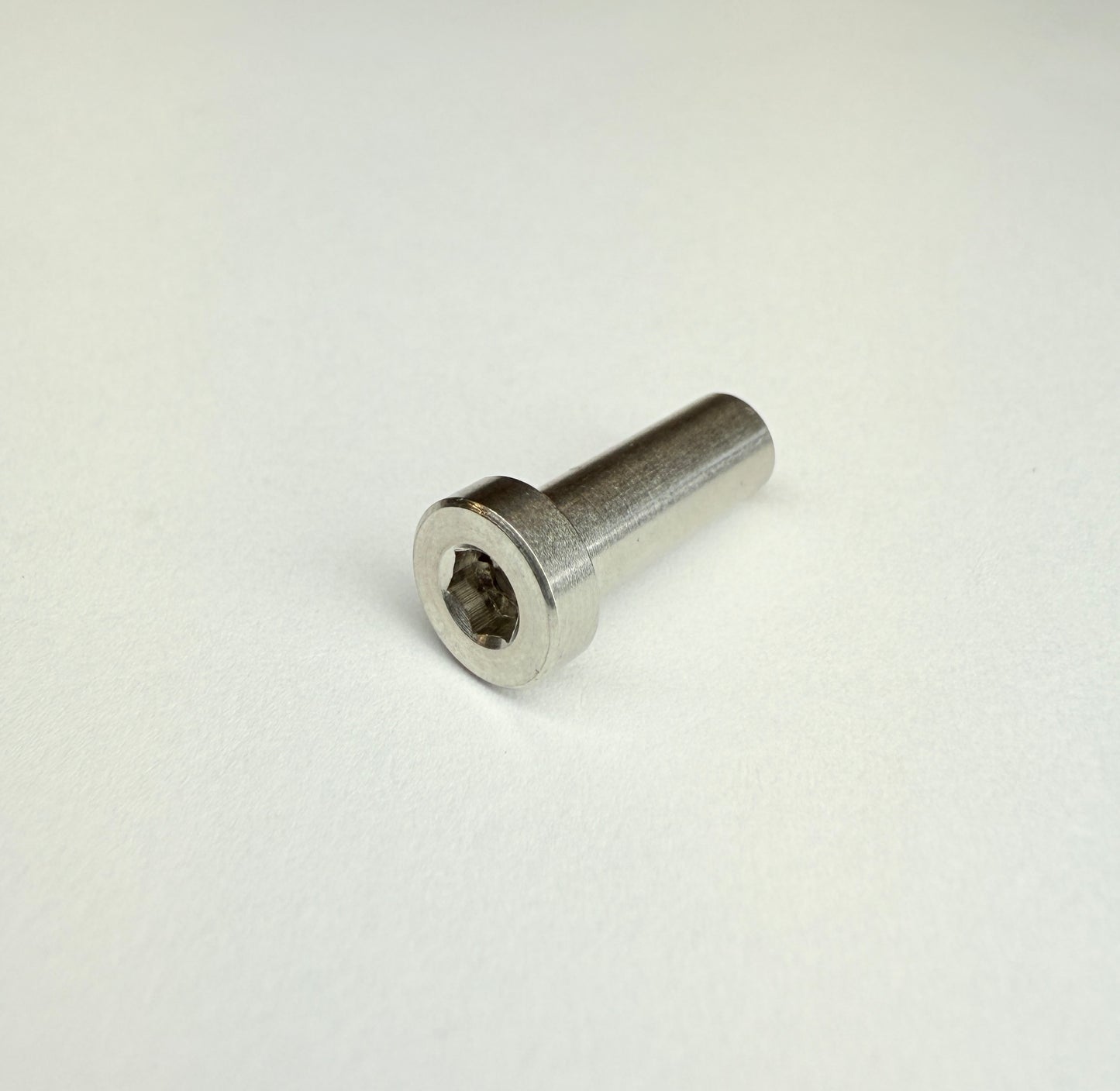

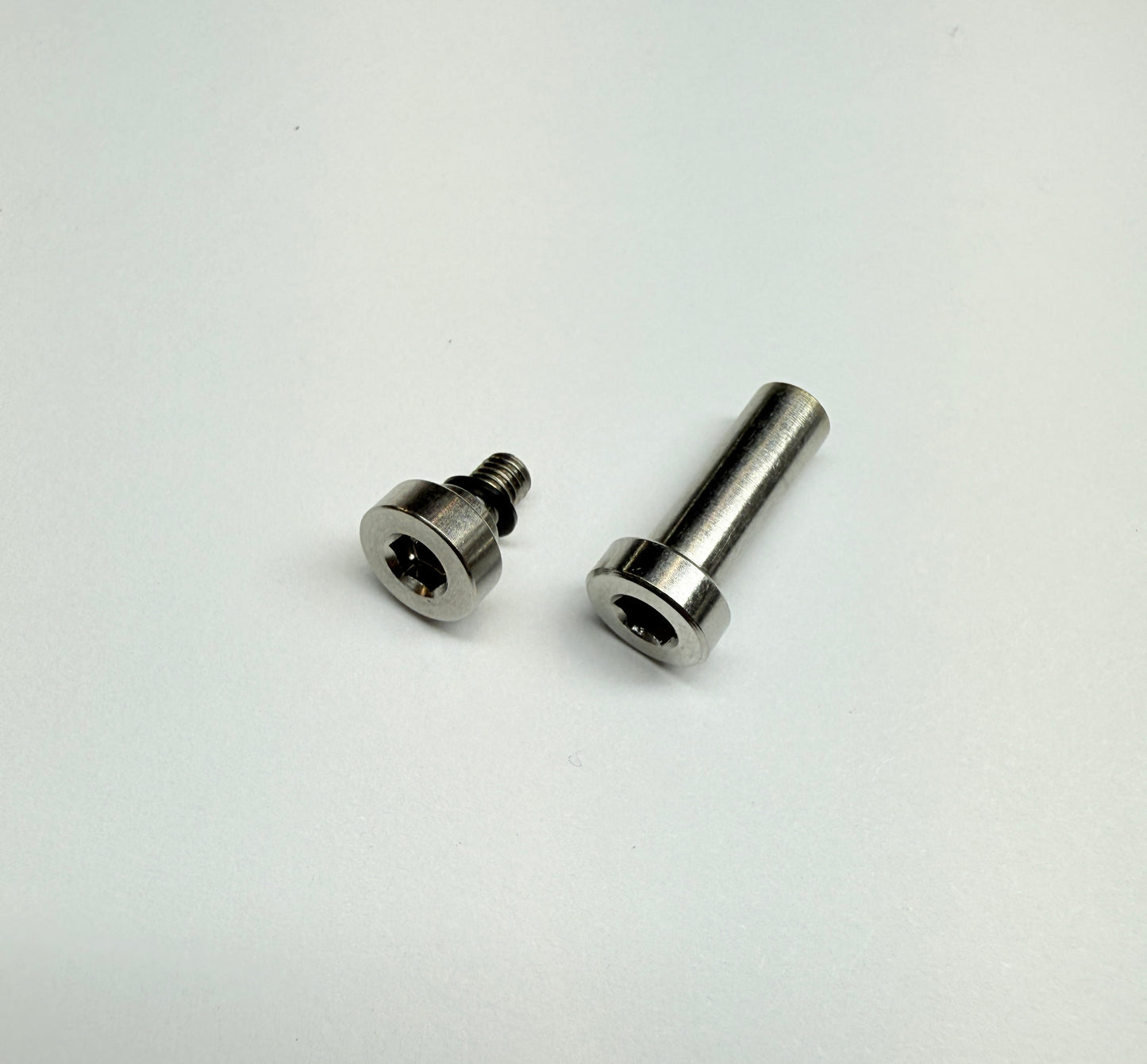

• Batch 1 machines do not have a shelf on the lever cover or piston so they need a female hex shape. If the a batch 1 machine has the long linkage update then it will use a female D shape in spot #1

Close up of lever cover with D shape

Close of lever cover with round hole

Close up of long throw linkage and batch 2 piston with arrows to shelf
